Unlock Precision in Trading with Harmonic Patterns Detection in Pine Script

//@version=5
indicator('Harmonic Patterns', overlay=true, max_bars_back=1000, max_lines_count=500, max_labels_count=500)
//
CRAK1 = input.int(13, step=10)
CRAK2 = input.int(17, step=10)
CRAK3 = input.int(110, step=10)
CRAK4 = input.int(109, step=10)
CRAK5 = input.int(103, step=10)
CRAK6 = input.int(1, step=10)
CRAK7 = input.int(1, step=10)
CRAK8 = input.int(9, step=10)
CRAK9 = input.int(11, step=10)
CRAK10 = input.int(120, step=10)
CRAK11 = input.int(200, step=10)
CRAK12 = input.int(200, step=10)
CRAK13 = input.int(110, step=10)
CRAK14 = input.int(11, step=10)
CRAK15 = input.int(12, step=10)
CRAK16 = input.int(2, step=10)
CRAK17 = input.int(1, step=10)
CRAK18 = input.int(2, step=10)
CRAK19 = input.int(1, step=10)
CRAK20 = input.int(2, step=10)
///
DETECT3 = input.int(18, step=10)
PATTERN1 = input(true)
PATTERN10 = input.int(18, step=5, minval=1)
COLORP1 = input(color.rgb(43, 52, 146, 55))
zigzag1Width = 1
zigzag1Style = line.style_dotted

PATTERN2 = input(true)
PATTERN20 = input.int(24, step=5, minval=1)
COLORP2 = input(color.rgb(43, 52, 146, 55))
zigzag2Width = 1
zigzag2Style = line.style_dotted

PATTERN3 = input(true)
PATTERN30 = input.int(32, step=5, minval=1)
COLORP3 = input(color.rgb(43, 52, 146, 55))
zigzag3Width = 1
zigzag3Style = line.style_dotted

PATTERN4 = input(true)
PATTERN40 = input.int(38, step=5, minval=1)
COLORP4 = input(color.rgb(43, 52, 146, 55))
zigzag4Width = 1
zigzag4Style = line.style_dotted

P11 = input(true)
P22 = input(true)
P33 = input(true)
P44 = input(true)
P55 = input(true)
P66 = input(true)
DETECTM = input.int(18, minval=5, step=5, maxval=200)
//
DATAC = input.int(350, step=10)
DATAC2 = input.int(400, step=10)
//
MaxRiskPerReward = input.int(29, title='DETECT/PER', step=10, minval=0)
//

//
E1 = input.int(370, step=10)
E2 = input.int(390, step=10)
showStatTable = false
CANCLE_PATTERNS = input(false)
//
CRAKD90 = input.int(200, step=10)
CRAKFALSE200 = input.int(200, step=10)
CRAKFALSE100 = input.int(300, step=10)
///
BULL_PATTERNS = input(color.silver)
BEAR_PATTERNS = input(color.blue)

err_min = (100 - DETECTM) / 100
err_max = (100 + DETECTM) / 100

var zigzagpivots1 = array.new_float(0)
var zigzagpivotbars1 = array.new_int(0)
var zigzagpivotdirs1 = array.new_int(0)

var zigzagpivots2 = array.new_float(0)
var zigzagpivotbars2 = array.new_int(0)
var zigzagpivotdirs2 = array.new_int(0)

var zigzagpivots3 = array.new_float(0)
var zigzagpivotbars3 = array.new_int(0)
var zigzagpivotdirs3 = array.new_int(0)

var zigzagpivots4 = array.new_float(0)
var zigzagpivotbars4 = array.new_int(0)
var zigzagpivotdirs4 = array.new_int(0)

var wmlines1 = array.new_line(8)
var wmtype1 = array.new_int(2, 1)
var wmLabels1 = array.new_bool(13, false)
var wmLabel1 = array.new_label(1)

var wmlines2 = array.new_line(8)
var wmtype2 = array.new_int(2, 1)
var wmLabels2 = array.new_bool(13, false)
var wmLabel2 = array.new_label(1)

var wmlines3 = array.new_line(8)
var wmtype3 = array.new_int(2, 1)
var wmLabels3 = array.new_bool(13, false)
var wmLabel3 = array.new_label(1)

var wmlines4 = array.new_line(8)
var wmtype4 = array.new_int(2, 1)
var wmLabels4 = array.new_bool(13, false)
var wmLabel4 = array.new_label(1)

pivots(length) =>
    float phigh = ta.highestbars(high, length) == 0 ? high : na
    float plow = ta.lowestbars(low, length) == 0 ? low : na
    dir = 0
    iff_1 = plow and na(phigh) ? -1 : dir[1]
    dir := phigh and na(plow) ? 1 : iff_1
    [dir, phigh, plow]

zigzag(length, zigzagpivots, zigzagpivotbars, zigzagpivotdirs) =>
    [dir, phigh, plow] = pivots(length)
    dirchanged = ta.change(dir)

    if phigh or plow
        value = dir == 1 ? phigh : plow
        bar = bar_index
        newDir = dir
        if not dirchanged and array.size(zigzagpivots) >= 1
            pivot = array.shift(zigzagpivots)
            pivotbar = array.shift(zigzagpivotbars)
            pivotdir = array.shift(zigzagpivotdirs)
            useNewValues = value * pivotdir < pivot * pivotdir
            value := useNewValues ? pivot : value
            bar := useNewValues ? pivotbar : bar
            bar

        if array.size(zigzagpivots) >= 2
            LastPoint = array.get(zigzagpivots, 1)
            newDir := dir * value > dir * LastPoint ? dir * 2 : dir
            newDir

        array.unshift(zigzagpivots, value=value)
        array.unshift(zigzagpivotbars, bar)
        array.unshift(zigzagpivotdirs, newDir)

        if array.size(zigzagpivots) > DETECT3
            array.pop(zigzagpivots)
            array.pop(zigzagpivotbars)
            array.pop(zigzagpivotdirs)

get_harmonic_label(wmLabels, dir, price, bar) =>
    isP11 = array.get(wmLabels, 0)
    isP22 = array.get(wmLabels, 1)
    isP33 = array.get(wmLabels, 2)
    isP44 = array.get(wmLabels, 3)
    isP55 = array.get(wmLabels, 4)
    isP66 = array.get(wmLabels, 5)

    labelText = isP11 ? 'Gartley' : ''
    labelText := labelText + (isP22 ? (labelText == '' ? '' : '\n') + 'Crab' : '')
    labelText := labelText + (isP33 ? (labelText == '' ? '' : '\n') + 'Deep Crab' : '')
    labelText := labelText + (isP44 ? (labelText == '' ? '' : '\n') + 'Bat' : '')
    labelText := labelText + (isP55 ? (labelText == '' ? '' : '\n') + 'Butterfly' : '')
    labelText := labelText + (isP66 ? (labelText == '' ? '' : '\n') + 'Shark' : '')


    trendColor = dir > 0 ? BULL_PATTERNS : BEAR_PATTERNS

    baseLabel = label.new(x=bar, y=price, text=labelText, yloc=yloc.price, color=trendColor, style=dir < 1 ? label.style_label_down : label.style_label_up, textcolor=color.black, size=size.normal)
    baseLabel

detect_harmonic_pattern(zigzagpivots, zigzagpivotbars, zigzagpivotdirs, wmlines, wmlabel, wmtype, wmLabels, zigzagColor, zigzagWidth, zigzagStyle, showZigZag) =>
    start = CANCLE_PATTERNS ? 1 : 0
    wm_pattern = false
    abcd_pattern = false
    double_pattern = false
    if array.size(zigzagpivots) >= 6 + start and showZigZag

        d = array.get(zigzagpivots, start + 0)
        dBar = array.get(zigzagpivotbars, start + 0)
        dDir = array.get(zigzagpivotdirs, start + 0)

        c = array.get(zigzagpivots, start + 1)
        cBar = array.get(zigzagpivotbars, start + 1)
        cDir = array.get(zigzagpivotdirs, start + 1)

        b = array.get(zigzagpivots, start + 2)
        bBar = array.get(zigzagpivotbars, start + 2)
        bDir = array.get(zigzagpivotdirs, start + 2)

        a = array.get(zigzagpivots, start + 3)
        aBar = array.get(zigzagpivotbars, start + 3)
        aDir = array.get(zigzagpivotdirs, start + 3)

        x = array.get(zigzagpivots, start + 4)
        xBar = array.get(zigzagpivotbars, start + 4)
        xDir = array.get(zigzagpivotdirs, start + 4)

        y = array.get(zigzagpivots, start + 5)
        yBar = array.get(zigzagpivotbars, start + 5)
        yDir = array.get(zigzagpivotdirs, start + 5)

        highPoint = math.max(x, a, b, c, d)
        lowPoint = math.min(x, a, b, c, d)
        dir = c > d ? 1 : -1

        xabRatio = math.abs(b - a) / math.abs(x - a)
        abcRatio = math.abs(c - b) / math.abs(a - b)
        bcdRatio = math.abs(d - c) / math.abs(b - c)
        xadRatio = math.abs(d - a) / math.abs(x - a)
        yxaRatio = math.abs(a - x) / math.abs(y - x)

        abTime = math.abs(aBar - bBar)
        cdTime = math.abs(cBar - dBar)
        abPrice = math.abs(a - b)
        cdPrice = math.abs(c - d)

        time_ratio = cdTime / abTime
        price_ratio = cdPrice / abPrice
        abcdDirection = a < b and a < c and c < b and c < d and a < d and b < d ? 1 : a > b and a > c and c > b and c > d and a > d and b > d ? -1 : 0

        risk = math.abs(b - d)
        reward = math.abs(c - d)
        riskPerReward = risk * 100 / (risk + reward)

        if b < highPoint and b > lowPoint
            //gartley
            if P11 and xabRatio >= 0.588 * err_min and xabRatio <= 0.648 * err_max and abcRatio >= 0.382 * err_min and abcRatio <= 0.886 * err_max and xadRatio >= 0.786 * err_min and xadRatio <= 0.886 * err_max
                wm_pattern := true
                array.set(wmLabels, 0, true)
            else
                array.set(wmLabels, 0, false)
            //Crab
            if P22 and  xabRatio >= 0.382 * err_min and xabRatio <= 0.618 * err_max and abcRatio >= 0.382 * err_min and abcRatio <= 0.886 * err_max and xadRatio >= 1.618 * err_min and xadRatio <= 1.902 * err_max
                wm_pattern := true
                array.set(wmLabels, 1, true)
            else
                array.set(wmLabels, 1, false)
            //Deep Crab
            if P33  and xabRatio >= 0.886 * err_min and xabRatio <= 0.936 * err_max and abcRatio >= 0.382 * err_min and abcRatio <= 0.886 * err_max and xadRatio >= 1.618 * err_min and xadRatio <= 1.902 * err_max
                wm_pattern := true
                array.set(wmLabels, 2, true)
            else
                array.set(wmLabels, 2, false)
            //Bat
            if P44 and xabRatio >= 0.382 * err_min and xabRatio <= 0.55 * err_max and abcRatio >= 0.382 * err_min and abcRatio <= 0.886 * err_max and xadRatio >= 0.886 * err_min and xadRatio <= 0.886 * err_max
                wm_pattern := true
                array.set(wmLabels, 3, true)
            else
                array.set(wmLabels, 3, false)
            //Butterfly
            if P55 and xabRatio >= 0.755 * err_min and xabRatio <= 0.816 * err_max and abcRatio >= 0.382 * err_min and abcRatio <= 0.886 * err_max and xadRatio >= 1.272 * err_min and xadRatio <= 1.272 * err_max
                wm_pattern := true
                array.set(wmLabels, 4, true)
            else
                array.set(wmLabels, 4, false)
            //Shark
            if P66 and xabRatio >= 0.382 * err_min and xabRatio <= 0.618 * err_max and abcRatio >= 1.13 * err_min and abcRatio <= 1.618 * err_max and xadRatio >= 0.886 * err_min and xadRatio <= 1.13 * err_max
                wm_pattern := true
                array.set(wmLabels, 5, true)
            else
                array.set(wmLabels, 5, false)

        cancelW = false
        cancelA = false
        cancelD = false
        if wm_pattern[1] and x == x[1] and a == a[1] and b == b[1] and c == c[1]
            line.delete(array.get(wmlines, 0))
            line.delete(array.get(wmlines, 1))
            line.delete(array.get(wmlines, 2))
            line.delete(array.get(wmlines, 3))
            line.delete(array.get(wmlines, 4))
            line.delete(array.get(wmlines, 5))
            line.delete(array.get(wmlines, 6))
            line.delete(array.get(wmlines, 7))
            label.delete(array.get(wmlabel, 0))
            cancelW := true
            cancelW

        if abcd_pattern[1] and a == a[1] and b == b[1] and c == c[1]
            line.delete(array.get(wmlines, 1))
            line.delete(array.get(wmlines, 2))
            line.delete(array.get(wmlines, 3))
            label.delete(array.get(wmlabel, 0))
            cancelA := true
            cancelA

        if double_pattern[1] and a == a[1] and b == b[1] and c == c[1]
            line.delete(array.get(wmlines, 5))
            label.delete(array.get(wmlabel, 0))
            cancelD := true
            cancelD

        if wm_pattern
            xa = line.new(y1=x, y2=a, x1=xBar, x2=aBar, color=zigzagColor, width=zigzagWidth, style=zigzagStyle)
            ab = line.new(y1=a, y2=b, x1=aBar, x2=bBar, color=zigzagColor, width=zigzagWidth, style=zigzagStyle)
            bc = line.new(y1=b, y2=c, x1=bBar, x2=cBar, color=zigzagColor, width=zigzagWidth, style=zigzagStyle)
            cd = line.new(y1=c, y2=d, x1=cBar, x2=dBar, color=zigzagColor, width=zigzagWidth, style=zigzagStyle)
            xb = line.new(y1=x, y2=b, x1=xBar, x2=bBar, color=zigzagColor, width=zigzagWidth, style=zigzagStyle)
            bd = line.new(y1=b, y2=d, x1=bBar, x2=dBar, color=zigzagColor, width=zigzagWidth, style=zigzagStyle)
            xd = line.new(y1=x, y2=d, x1=xBar, x2=dBar, color=zigzagColor, width=zigzagWidth, style=zigzagStyle)
            ac = line.new(y1=a, y2=c, x1=aBar, x2=cBar, color=zigzagColor, width=zigzagWidth, style=zigzagStyle)
            array.set(wmlines, 0, xa)
            array.set(wmlines, 1, ab)
            array.set(wmlines, 2, bc)
            array.set(wmlines, 3, cd)
            array.set(wmlines, 4, xb)
            array.set(wmlines, 5, bd)
            array.set(wmlines, 6, xd)
            array.set(wmlines, 7, ac)
            array.set(wmtype, 0, dir)
            linefill.new(xa, xb, color=color.rgb(44, 93, 136, 94))
            linefill.new(bc, bd, color=color.rgb(44, 93, 136, 94))
        if abcd_pattern and not wm_pattern
            ab = line.new(y1=a, y2=b, x1=aBar, x2=bBar, color=zigzagColor, width=zigzagWidth, style=zigzagStyle)
            bc = line.new(y1=b, y2=c, x1=bBar, x2=cBar, color=zigzagColor, width=zigzagWidth, style=zigzagStyle)
            cd = line.new(y1=c, y2=d, x1=cBar, x2=dBar, color=zigzagColor, width=zigzagWidth, style=zigzagStyle)
            array.set(wmlines, 1, ab)
            array.set(wmlines, 2, bc)
            array.set(wmlines, 3, cd)
            array.set(wmtype, 0, dir)
        if double_pattern and not wm_pattern
            bd = line.new(y1=b, y2=d, x1=bBar, x2=dBar, color=zigzagColor, width=zigzagWidth, style=zigzagStyle)
            array.set(wmlines, 5, bd)
            array.set(wmtype, 0, dir)

        if wm_pattern or abcd_pattern or double_pattern
            array.set(wmlabel, 0, get_harmonic_label(wmLabels, dir, d, dBar))

    pattern = wm_pattern and not wm_pattern[1] or abcd_pattern and not abcd_pattern[1] or double_pattern and not double_pattern[1]
    pattern

zigzag(PATTERN10, zigzagpivots1, zigzagpivotbars1, zigzagpivotdirs1)
zigzag(PATTERN20, zigzagpivots2, zigzagpivotbars2, zigzagpivotdirs2)
zigzag(PATTERN30, zigzagpivots3, zigzagpivotbars3, zigzagpivotdirs3)
zigzag(PATTERN40, zigzagpivots4, zigzagpivotbars4, zigzagpivotdirs4)



wm_pattern1 = detect_harmonic_pattern(zigzagpivots1, zigzagpivotbars1, zigzagpivotdirs1, wmlines1, wmLabel1, wmtype1, wmLabels1, COLORP1, zigzag1Width, zigzag1Style, PATTERN1)
wm_pattern2 = detect_harmonic_pattern(zigzagpivots2, zigzagpivotbars2, zigzagpivotdirs2, wmlines2, wmLabel2, wmtype2, wmLabels2, COLORP2, zigzag2Width, zigzag2Style, PATTERN2)
wm_pattern3 = detect_harmonic_pattern(zigzagpivots3, zigzagpivotbars3, zigzagpivotdirs3, wmlines3, wmLabel3, wmtype3, wmLabels3, COLORP3, zigzag3Width, zigzag3Style, PATTERN3)
wm_pattern4 = detect_harmonic_pattern(zigzagpivots4, zigzagpivotbars4, zigzagpivotdirs4, wmlines4, wmLabel4, wmtype4, wmLabels4, COLORP4, zigzag4Width, zigzag4Style, PATTERN4)

alertcondition(wm_pattern1 or wm_pattern2 or wm_pattern3 or wm_pattern4, title='Harmonic Alert', message='Harmonic Alert {{ticker}}')

var stats = table.new(position=position.top_right, columns=8, rows=DETECT3 + 2, border_width=1)

if barstate.islast and showStatTable
    if PATTERN1
        table.cell(table_id=stats, column=0, row=0, text='Zigzag ' + str.tostring(PATTERN10), bgcolor=color.black, text_color=color.white)
        table.cell(table_id=stats, column=0, row=1, text='Price', bgcolor=color.black, text_color=color.white)
        table.cell(table_id=stats, column=1, row=1, text='BarIndex', bgcolor=color.black, text_color=color.white)

        for i = 0 to array.size(zigzagpivots1) - 1 by 1
            bgcolor = array.get(zigzagpivotdirs1, i) == 1 ? color.lime : color.orange
            table.cell(table_id=stats, column=0, row=i + 2, text=str.tostring(array.get(zigzagpivots1, i)), bgcolor=bgcolor)
            table.cell(table_id=stats, column=1, row=i + 2, text=str.tostring(array.get(zigzagpivotbars2, i)), bgcolor=bgcolor)

    if PATTERN2
        table.cell(table_id=stats, column=2, row=0, text='Zigzag ' + str.tostring(PATTERN20), bgcolor=color.black, text_color=color.white)
        table.cell(table_id=stats, column=2, row=1, text='Price', bgcolor=color.black, text_color=color.white)
        table.cell(table_id=stats, column=3, row=1, text='BarIndex', bgcolor=color.black, text_color=color.white)

        for i = 0 to array.size(zigzagpivots2) - 1 by 1
            bgcolor = array.get(zigzagpivotdirs2, i) == 1 ? color.lime : color.orange
            table.cell(table_id=stats, column=2, row=i + 2, text=str.tostring(array.get(zigzagpivots2, i)), bgcolor=bgcolor)
            table.cell(table_id=stats, column=3, row=i + 2, text=str.tostring(array.get(zigzagpivotbars2, i)), bgcolor=bgcolor)

    if PATTERN3
        table.cell(table_id=stats, column=4, row=0, text='Zigzag ' + str.tostring(PATTERN30), bgcolor=color.black, text_color=color.white)
        table.cell(table_id=stats, column=4, row=1, text='Price', bgcolor=color.black, text_color=color.white)
        table.cell(table_id=stats, column=5, row=1, text='BarIndex', bgcolor=color.black, text_color=color.white)

        for i = 0 to array.size(zigzagpivots3) - 1 by 1
            bgcolor = array.get(zigzagpivotdirs3, i) == 1 ? color.lime : color.orange
            table.cell(table_id=stats, column=4, row=i + 2, text=str.tostring(array.get(zigzagpivots3, i)), bgcolor=bgcolor)
            table.cell(table_id=stats, column=5, row=i + 2, text=str.tostring(array.get(zigzagpivotbars3, i)), bgcolor=bgcolor)

    if PATTERN4
        table.cell(table_id=stats, column=6, row=0, text='Zigzag ' + str.tostring(PATTERN40), bgcolor=color.black, text_color=color.white)
        table.cell(table_id=stats, column=6, row=1, text='Price', bgcolor=color.black, text_color=color.white)
        table.cell(table_id=stats, column=7, row=1, text='BarIndex', bgcolor=color.black, text_color=color.white)

        for i = 0 to array.size(zigzagpivots4) - 1 by 1
            bgcolor = array.get(zigzagpivotdirs4, i) == 1 ? color.lime : color.orange
            table.cell(table_id=stats, column=6, row=i + 2, text=str.tostring(array.get(zigzagpivots4, i)), bgcolor=bgcolor)
            table.cell(table_id=stats, column=7, row=i + 2, text=str.tostring(array.get(zigzagpivotbars4, i)), bgcolor=bgcolor)




/////////

//'


//fiboLevel= b + (1.618 * (c - b))
//line.new(x1=dBar+1, y1=fiboLevel, x2=dBar+40, y2=fiboLevel, color=color.red, width=1)


//isP11 = array.get(wmLabels, 0)
//isP22 = array.get(wmLabels, 1)
//isP33 = array.get(wmLabels, 2)
//isP44 = array.get(wmLabels, 3)
//isP55 = array.get(wmLabels, 4)
//isP66 = array.get(wmLabels, 5)

How to Apply Pine Script in TradingView:

1. Open TradingView and log in to your account.
2. Go to the Pine Script Editor at the bottom of the screen.
3. Copy the provided Pine Script code.
4. Paste it into the editor.
5. Click Save and name it, e.g., “Harmonic Patterns Detector.”
6. Click Add to Chart to apply the indicator to your selected chart.
7. Adjust the input parameters to match your trading preferences and timeframe.

Key Features of the Script:

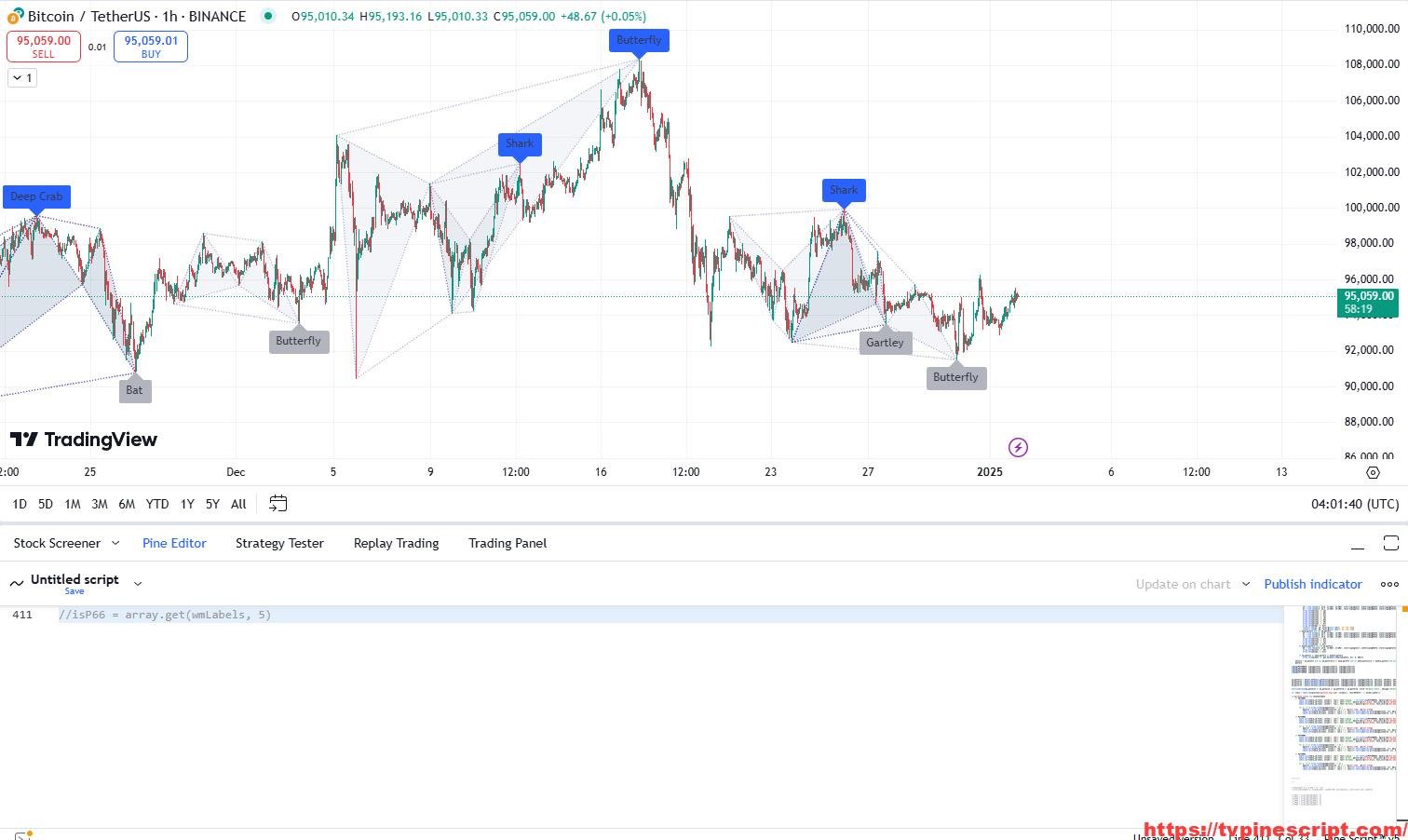

1. Harmonic Pattern Detection:
   • Identifies popular harmonic patterns such as Gartley, Crab, Deep Crab, Bat, Butterfly, and Shark.
   • Automatically detects patterns using price ratios and pivot points.
2. Customizable Zigzag Settings:
   • Includes multi-layered zigzag detection for pattern identification.
   • Adjustable parameters to fine-tune the sensitivity of pattern recognition.
3. Visualized Harmonic Patterns:
   • Draws lines connecting pivot points to outline detected harmonic structures.
   • Highlights bullish and bearish patterns with customizable color schemes.
4. Risk/Reward Analysis:
   • Calculates risk-to-reward ratios for each pattern.
   • Displays price levels for potential entries, stops, and targets.
5. Alerts for Detected Patterns:
   • Built-in alert conditions for real-time notifications of detected harmonic patterns.
6. Comprehensive Table Display:
   • Tabulates data for each pattern including price, bar index, and zigzag pivots.
   • Helps track multiple patterns simultaneously.
7. High Customization:
   • Offers numerous input settings for controlling detection accuracy, colors, and display preferences.
   • Users can toggle specific patterns and adjust error margins for precise analysis.

Recommended Usage:

1. Advanced Chart Analysis:
   • Use this script to enhance your chart analysis by identifying complex harmonic patterns.
   • Ideal for traders specializing in technical analysis and pattern-based strategies.
2. Entry and Exit Signals:
   • Leverage the detected patterns to time entries and exits based on price projections and risk management.
3. Scalping and Swing Trading:
   • Effective for both short-term scalping and longer-term swing trades.
   • Customize the zigzag settings to adapt to different timeframes.
4. Risk Management:
   • Utilize the risk/reward ratios provided by the script to set stop-loss and take-profit levels.
